Mynx 9500/50 Vertical Machining Centre

Features

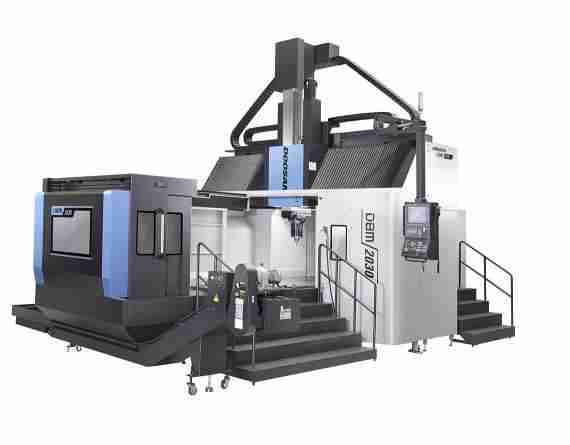

The DN Solutions (formerly Doosan Machine Tools) Heavy Duty DBM Series Bridge Mill features a 50 taper, 8,000 rpm RAM type spindle with up to 74 horsepower and 745 ft-lbs of torque. The DBM offers an expanded work envelope to take on the biggest mold and die applications and introduces an automatic attachment changer capable of handling right angle heads, extensions, high-speed spindle attachments, and universal heads.

Specifications

Travel Distance X-axis
2500 mm (98.4 in)
Travel Distance Y-axis
950 mm (37.4 in)
Travel Distance Z-axis
850 mm (33.5 in)
Rapid Traverse X-axis
16 m/min (630 in/min)
Rapid Traverse Y-axis
16 m/min (630 in/min)
Rapid Traverse Z-axis
16 m/min (630 in/min)
Table Size
2500 x 950 mm (98.4 x 37.4 in)
Max Load
3500 kg (7716 lbs)
Spindle to Table Distance
200 - 1050 mm (7.9 - 41.3 in)
Speed
6000 rpm
Power
22 kW (30 Hp)
Torque
452.5 Nm (334 ft-lbs)
Shank
BIG PLUS CAT 50
Max Diameter
125/230 mm (4.9/9 in)
Max Length
350 mm (13.8 in)
